Ground Bearing Slab vs Suspended Slab: Making the Right Foundation Choice

Choosing the right foundation system is one of the most critical decisions in any construction project. The foundation not only supports the entire structure but also determines long-term stability, cost-effectiveness, and performance. Among the most common foundation options in UK construction are ground bearing slabs and suspended slabs, each offering distinct advantages depending on site conditions, soil quality, and project requirements.

Many contractors and property owners face confusion when selecting between these two systems. The wrong choice can lead to significant problems, including structural settlement, moisture issues, and unnecessary expense. This guide breaks down both foundation types, including specialized solutions like mini piling Hemel Hempstead, helping you make an informed decision that ensures structural integrity and value for money.

What is a Ground Bearing Slab?

A ground bearing slab, also known as a solid floor or slab-on-grade, is a concrete foundation poured directly onto prepared ground. This system transfers the building load directly to the soil beneath. The construction process typically involves excavating the topsoil, laying a sub-base of compacted hardcore, installing a damp-proof membrane, adding insulation, and finally pouring the concrete slab.

Ground bearing slabs are popular in UK residential and light commercial construction due to their straightforward installation and cost-effectiveness. According to the Institution of Civil Engineers, selection of foundation types must always consider local ground conditions and load requirements. They work best on sites with good load-bearing soil and minimal ground movement risk, creating a robust, monolithic structure that can withstand considerable loads when properly designed.

Key Advantages of Ground Bearing Slabs

• Cost Efficiency: Ground bearing slabs generally require less material and labour compared to suspended systems. The absence of formwork, supporting structures, and void spaces means faster construction times and reduced overall project costs.
• Thermal Performance: Modern ground bearing slabs incorporate high-performance insulation materials directly beneath the concrete, creating excellent thermal efficiency. This design helps meet stringent Building Regulations and can significantly reduce heating costs over the building’s lifetime.
• Structural Simplicity: The monolithic nature of ground bearing slabs provides excellent load distribution. When designed correctly, they can support heavy point loads without additional reinforcement, making them ideal for warehouses, retail units, and residential properties.
• Reduced Maintenance: With no void space beneath the floor, there’s less risk of pest infestation, moisture accumulation, or degradation of supporting elements. This translates to lower long-term maintenance requirements and costs.

What is a Suspended Slab?

A suspended slab, also called a suspended floor, is a concrete platform supported above ground level by walls, beams, or piles. This creates a void space between the ground and the underside of the floor. Suspended slabs can be constructed using various methods, including beam and block, pre-cast concrete planks, or cast in-situ concrete with permanent formwork.

This foundation type is especially valuable on sites with challenging ground conditions. When soil has poor bearing capacity, high water tables, contamination, or significant slope variations, a suspended slab allows construction to proceed without extensive ground remediation.

Key Advantages of Suspended Slabs

• Versatility on Difficult Sites: Suspended slabs excel where ground bearing systems would struggle. On sloping sites, areas with poor soil, or locations with high water tables, suspending the floor above problem areas offers a practical solution without expensive ground improvement works.
• Services Integration: The void space beneath a suspended floor provides convenient routes for plumbing, electrical conduits, and drainage systems. This flexibility simplifies installation, maintenance, and future alterations, particularly valuable in commercial buildings where services may need regular updating.
• Ventilation Benefits: Properly designed suspended floors include ventilation to the void space, preventing moisture buildup and associated problems like dampness or dry rot. This natural ventilation system can improve indoor air quality and protect structural elements from degradation.
• Adaptability to Uneven Ground: Rather than extensive cut-and-fill earthworks to create a level platform, suspended slabs can span over uneven terrain. This approach preserves existing ground levels, reduces excavation costs, and minimizes environmental disturbance.

Comparing Construction Costs and Timescales

Initial construction costs typically favour ground bearing slabs for straightforward sites with good soil conditions. The simpler construction process requires less specialist labour and fewer materials. However, this cost advantage diminishes rapidly when ground conditions necessitate improvement works, deep excavations, or contamination remediation.

Suspended slabs involve higher upfront costs due to additional materials, formwork, and the complexity of creating supporting structures. However, when site conditions are challenging, suspended systems can prove more economical overall by avoiding expensive ground preparation. According to construction industry data, suspended slabs may add 10-20% to foundation costs on good sites but can save 30-50% on sites requiring significant ground improvement.

Construction timescales also differ considerably. Ground bearing slabs can often be completed in a matter of days on straightforward sites, with minimal curing time required before construction can continue. Suspended slabs require more time for formwork installation, concrete curing, and prop removal, potentially adding several weeks to the construction programme. Project managers must balance these timing considerations against site-specific challenges and overall project constraints.

When to Choose Each Foundation Type

Ground Bearing Slabs are the optimal choice when:

• Soil has good bearing capacity (typically clay, firm sand, or gravel)
• The site is relatively level with minimal slopes
• Ground contamination is not present
• Water table levels are sufficiently low
• Construction budget prioritizes initial cost savings
• Project timeline is tight

Suspended Slabs become preferable when:

• Soil has poor bearing capacity or is highly compressible
• Significant ground level variations exist across the site
• High water tables or flooding risks are present
• Ground contamination requires isolation from the building
• Extensive service runs need accommodation
• Future flexibility for service alterations is important

The Role of Piling in Foundation Solutions

For both ground bearing and suspended slab systems, piling can provide essential support in challenging conditions. Piled foundations transfer building loads to deeper, more stable soil strata or bedrock, bypassing problematic surface soils. This technique is particularly valuable when combining suspended slabs with weak surface conditions.

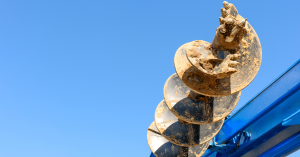

Piling has become increasingly sophisticated, with modern techniques offering solutions for virtually any ground condition. Driven piles, bored piles, and continuous flight auger methods each have specific applications, and professional ground investigation helps determine the most appropriate system.

Mini piling has gained popularity for supporting suspended floors in restricted access situations, urban infill developments, and residential extensions. These smaller-diameter piles can be installed with compact equipment, making them ideal for sites where space constraints or existing structures limit conventional construction methods. The technique provides reliable support while minimizing disruption, noise, and vibration.

Ring Beams and Load Distribution

Ring beams play a crucial role in both ground bearing and suspended slab construction. These reinforced concrete beams form a continuous loop around the building perimeter, distributing loads evenly and preventing differential settlement. In ground bearing systems, ring beams support external walls and tie the structure together, while in suspended systems, they often form the primary support for the floor slab itself.

The design of ring beams must account for soil conditions, building loads, and potential ground movement. Proper reinforcement detailing ensures the beam can resist tension forces, while adequate bearing surfaces distribute compression loads without overstressing the supporting ground. Working with structural engineers to optimize ring beam design can prevent common problems such as cracking, settlement, and structural distortion.

In areas with clay soils prone to seasonal movement, ring beams become even more critical. They bridge across zones of ground movement, preventing localized settlement from affecting the entire structure. Combined with appropriate foundations, well-designed ring beams provide a robust solution that accommodates ground behaviour while maintaining structural integrity.

Conclusion

Selecting between ground bearing and suspended slabs requires careful evaluation of site conditions, project requirements, budget constraints, and long-term performance expectations. Ground bearing slabs offer simplicity and economy on suitable sites, while suspended slabs provide versatility and reliability where ground conditions present challenges. Neither system is universally superior; the best choice depends entirely on your specific circumstances. By thoroughly investigating ground conditions, consulting with experienced structural engineers, and considering both immediate costs and long-term implications, you can make an informed decision that ensures your project’s success and longevity.
